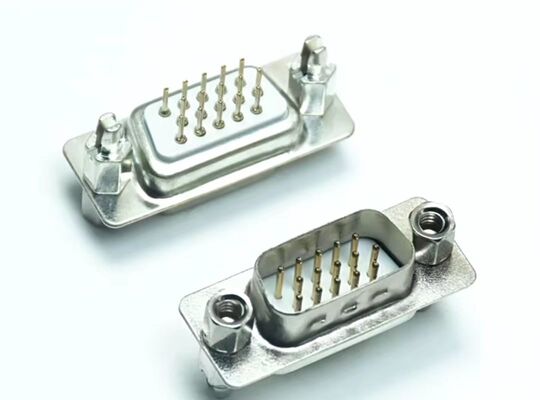

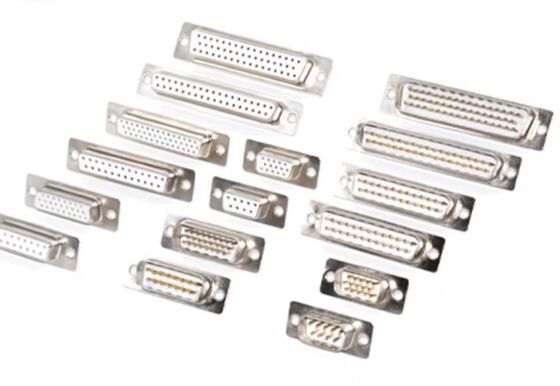

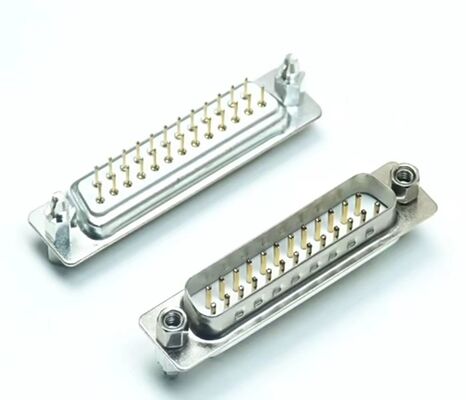

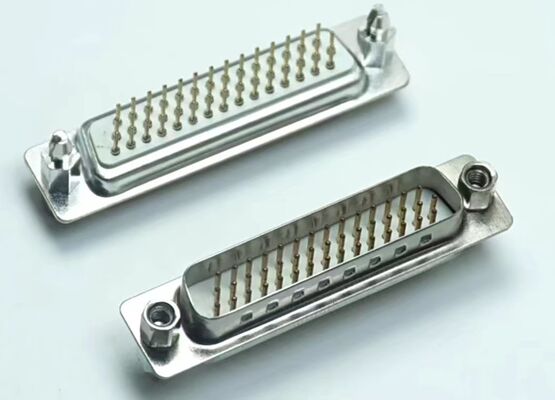

DB9/15/25/37 connectors, DB50/HDB26/44 male and female COM port 9-pin RS232/485 serial connectors

Product Description:

The 6FX2003 Servo Motor Connectors are engineered to provide reliable and efficient connections for a wide range of servo motor applications. Crafted from high-quality metal and plastic materials, these connectors ensure durability and long-lasting performance even in demanding environments. The combination of metal for structural strength and plastic for insulation offers an optimal balance, making the 6FX2003 connectors suitable for both industrial and commercial uses.

Available in multiple gender configurations, including 8-pin, 4-pin, 6-pin, 12-pin, and 17-pin options, the 6FX2003 connectors accommodate various wiring requirements and motor specifications. This versatility allows seamless integration with different servo motor types and control systems, enhancing compatibility across a broad spectrum of devices. Whether you are working with compact setups or complex motor assemblies, these connectors provide the flexibility needed to meet your project’s demands.

One of the standout features of the 6FX2003 is the advanced contact plating options. The connectors come with either silver-plated contacts or gold-plated pins. Silver plating is known for its excellent conductivity and resistance to corrosion, making it ideal for high-current applications and environments where reliability is paramount. On the other hand, gold-plated pins offer superior resistance to oxidation and ensure stable signal transmission, especially in sensitive control circuits. This dual plating option allows users to select the best solution based on their specific performance and environmental requirements.

The 6FX2003 connectors boast an impressive voltage rating of up to 1000V, making them well-suited for both low and high-voltage servo motor systems. This high voltage tolerance ensures safe operation and reduces the risk of electrical failures, contributing to the overall reliability of the motor control system. Such a robust voltage rating is particularly beneficial when dealing with high torque DC servo motors or AC brushless servo motors, which often operate under demanding electrical conditions.

In the realm of hydraulic brake motors, the 6FX2003 connectors prove to be an essential component. Hydraulic brake motors require precise and secure electrical connections to maintain optimal functionality and safety. The sturdy construction and superior contact quality of the 6FX2003 connectors help ensure that hydraulic brake motors operate smoothly without interruptions caused by poor connectivity or signal loss. This reliability is crucial in applications where braking performance directly impacts safety and operational efficiency.

High torque DC servo motors also benefit significantly from the 6FX2003 connectors. These motors generate substantial mechanical force, and their control systems demand connectors that can handle high current loads and provide consistent electrical contact. The 6FX2003, with its metal/plastic build and high-quality contact plating, delivers excellent electrical performance and mechanical stability, supporting the demanding requirements of high torque DC servo motors in various industrial applications.

Moreover, the 6FX2003 connectors are an excellent match for AC brushless servo motors, which are widely used in precision control and automation systems. The stable and low-resistance connections provided by the silver or gold-plated contacts ensure that AC brushless servo motors receive clean and uninterrupted power and signal transmission. This contributes to smoother motor operation, improved efficiency, and enhanced overall system performance.

In summary, the 6FX2003 Servo Motor Connectors combine durable materials, flexible pin configurations, superior contact plating, and a high voltage rating to meet the rigorous demands of modern servo motor applications. Whether you are dealing with hydraulic brake motors, high torque DC servo motors, or AC brushless servo motors, these connectors offer the reliability and performance necessary to maintain optimal system functionality. Their robust design and versatile features make them an indispensable choice for engineers and technicians seeking dependable connectivity solutions in the field of servo motor technology.

Features:

• Product Name: Servo Motor Connectors
• Voltage Rating: 1000V
• Current Rating: 1A, 10A, and other options available
• Mounting Type: Panel Mount and Cable Mount
• Number of Contacts: Available in 4-pin, 6-pin, 8-pin, 12-pin, and 17-pin configurations
• Application: Ideal for Industrial Automation systems
• Compatible with High Torque DC Servo Motors
• Supports AC Servo Drive connections
• Suitable for use with Hydraulic Brake Motors

Technical Parameters:

Applications:

The NO MARK Servo Motor Connectors, model number 6FX2003, are designed to meet the demanding requirements of industrial automation environments. Manufactured in China and certified with CE and ISO9001 standards, these connectors ensure high-quality performance and reliability. With a supply ability of 1000 pieces per day and a minimum order quantity of 100, these connectors are ideal for businesses seeking efficient and scalable solutions. Packaged securely in carton boxes, they offer safe delivery within 1-3 working days, with flexible payment terms including T/T and PayPal.

These Servo Motor Connectors are specifically engineered for use with DC Servo Motor Drives, Brushless Servo Motors, and AC Servo Motor Drivers. Their robust design supports a voltage rating of up to 1000V, making them suitable for high-power applications. The connectors accommodate wire gauges ranging from 18-24 AWG or more, and AWG 3-12 diameter, providing versatility for various wiring configurations. Available in multiple contact configurations—8-pin, 4-pin, 6-pin, 12-pin, and 17-pin—they can be matched precisely to your servo motor system requirements.

In industrial automation, these connectors are essential components for seamless and secure electrical connections between servo motors and their drives. They are widely used in applications such as robotic arms, CNC machinery, automated assembly lines, and precision positioning systems. The high current capacity and excellent insulation properties ensure stable signal transmission and power delivery, minimizing downtime and enhancing overall system reliability.

Additionally, the rugged construction of the NO MARK 6FX2003 connectors withstands harsh industrial environments, including exposure to dust, vibration, and temperature fluctuations. This makes them suitable for use in manufacturing plants, automotive production, packaging machinery, and other automated industrial processes where durability and performance are critical.

Whether upgrading existing servo motor systems or designing new automation equipment, these connectors offer a dependable solution for connecting DC Servo Motor Drives, Brushless Servo Motors, and AC Servo Motor Drivers. Their diverse pin options and compatibility with various wire gauges provide flexibility to engineers and technicians, ensuring optimal connectivity and system efficiency in complex industrial automation scenarios.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are designed to meet the highest standards of quality and performance. Manufactured in China and certified by CE and ISO9001, these connectors are ideal for use with Electro Hydraulic Servo systems, AC Brushless Servo Motors, and Brushless Servo Motors. With a voltage rating of 1000V, they ensure reliable and efficient power transmission.

We offer a variety of gender options including 8pin, 4pin, 6pin, 12pin, and 17pin connectors, made from durable metal and plastic materials. The termination types available are crimp and solder, providing flexibility to suit different application needs.

Our minimum order quantity is 100 pieces, with a supply ability of 1000 pieces per day. The connectors are carefully packaged in carton boxes to ensure safe delivery. We guarantee a fast delivery time of 1-3 working days, and accept payment terms including T/T and PayPal.

Choose our Servo Motor Connectors for high-quality, customizable solutions tailored for your Electro Hydraulic Servo and Brushless Servo Motor applications.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and secure connections for servo motor applications. For technical support, we offer comprehensive assistance including installation guidance, troubleshooting, and maintenance tips to ensure optimal performance of your connectors.

We provide detailed product documentation, including datasheets and wiring diagrams, to help you select the right connector for your specific servo motor system. Our technical team is available to assist with any product-related inquiries and to support you in integrating our connectors into your application.

In addition to technical support, we offer customization services to tailor our Servo Motor Connectors to meet unique specifications or requirements. Whether you need different pin configurations, cable lengths, or special materials, our engineering team can work with you to develop a solution that fits your needs.

We are committed to quality and reliability, and our support services include guidance on proper connector handling, installation best practices, and recommendations for maintenance to maximize the lifespan and performance of your servo motor connections.

For ongoing service, we provide repair and replacement options, as well as warranty support to ensure your investment is protected. Our goal is to deliver not only high-quality products but also exceptional support throughout the lifecycle of your servo motor systems.
